Custom Outdoor Enclosure OEM: Selection Guide for Industrial Buyers

How to Choose the Right Custom Outdoor Enclosure OEM for Your Project

Choosing a dependable custom outdoor enclosure OEM is one of the most important sourcing decisions a project engineer or purchasing manager will make. Get the wrong enclosure and you get a silent failure–corrosion, leak path degradation, and costly electrical component failures in the field. Choose an experienced enclosure partner and you get a housing that reliably matches your specifications, meets NEMA and IP protection standards, and delivers on a lead time that keeps your project on schedule.

This white paper looks at the key factors that distinguish a capable enclosure manufacturer from one that will lead to re-work and warranty claims: protection standards, materials, OEM criteria, and real-world application requirements in telecom, solar, traffic control, and industrial settings.

What Makes an Outdoor Enclosure “Custom” — and When Do You Need One?

A custom enclosure is an electrical enclosure designed and manufactured to meet exact dimensional, environmental, and functional parameters that off-the-shelf enclosures do not address. Most customers just accept a modified standard design, but that route costs more than a purpose-built enclosure over the life-cycle.

NEMA and IP Ratings Explained — Which Protection Level Fits Your Application?

Every outdoor enclosure selection starts with the obvious: what needs to be kept out of this enclosure? Protection comes from 2 parallel systems–NEMA (created by the National Electrical Manufacturers Association) and IEC IP ratings (created per IEC 60529). Both describe protection against solid objects and liquids, but are not compatible.

Under the ANSI/NEMA 250-2020 spec – the most recent standard for enclosures rated up to 1,000V–NEMA defines 13 types for non-hazardous locations. A NEMA-rated enclosure meets or exceeds its IP counterpart–but the reverse is not true because NEMA adds corrosion testing, gasket aging, and ice formation tests that IP does not mandate.

NEMA 4X enclosures are tested for 600 hours salt spray resistance per ASTM B117, then tested for an additional 200 hours compared to an AISI Type 304 stainless steel specimen – for a total of 800 hours corrosion resistance. An IP66 enclosure, on the other hand, is not salt spray tested at all. This can be a significant consideration when choosing between these two standards in a harsh coastal or chemical plant environment.

Material Options for Outdoor Enclosures — Steel, Aluminum, and Polycarbonate Compared

Materials selection influences more than strength – it impacts weight, thermal dynamics, corrosion susceptibility, and entire life cycle financial planning. Five materials dominate outdoor enclosure construction:

Stainless steel (304 or 316 grade) is the NEMA 4X enclosure go-to in anything corrosive. 316, which contains 2-3% molybdenum, works with chloride levels up to 1,000 ppm – the industry standard for seaside plants and chemical facilities. That 20-30% cost differential over 304 is more than offset by avoided replacement cost.

Aluminum 5052-H32 has become the standard sheet metal enclosure material. Weighs about 1/3 steel and conducts heat 8.5 times more efficiently at 138 v 16.2 W/mK, aluminum enclosures are ideal in sites where passive heat transference is desirable – desert solar plants, high-ambient sites, rooftop telecom equipment. Due to its tight bend radius capability, it is easily formed on CNC press brake equipment.

Carbon steel remains an inexpensive but commonplace enclosure material, due to the low price. Of course, corrosion resistance is dependent on surface treatment: powder coating with roughly 0.5 mm of coating provides roughly 500 hours of ASTM B117 salt spray resistance, hot-dip galvanizing can provide between 8,000 and 10,000 hours. Powder-coated carbon steel is well suited for most outdoor applications not exposed to chemicals, at 2-4 mils (50-100 microns) of coating thickness.

Polycarbonate has the most impact toughness of any enclosure material by a wide margin – “standing up” to in excess of 900 lbs of impact force – with a UL94 5Va flame rating (ULs highest classification for flame ratings). Polycarbonates that are UV stabilized have 10-20 year outdoor life for the UV component with good dielectric properties, and are non-conductive for electrical junction boxes, metering enclosures and environments where EMI may be significant.

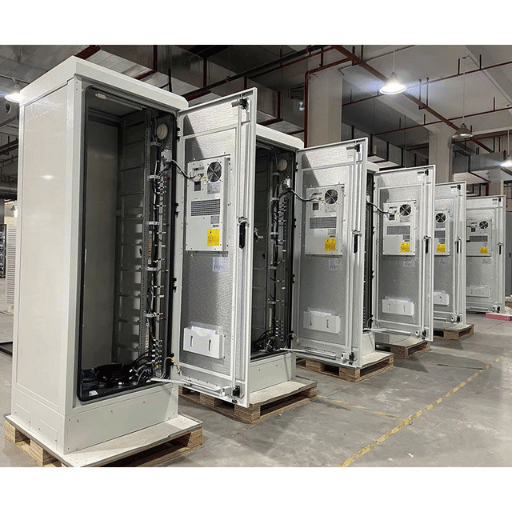

What to Look for in a Custom Outdoor Enclosure OEM

Not every “custom” enclosure manufacturer that can make any configuration you want is capable of a product that will pass UL/ANSI and NEMA standards. The gap between a sheet metal bending shop and a true OEM that engineers an enclosure product to high standards can be big. What should you look for ahead of time?

• ✔
  UL listing (UL 50E / UL 508A) — UL 50E covers environmental protection ratings for electrical enclosures. UL 508A governs industrial control panel construction. Both require the manufacturer to maintain qualified technical representatives and pass routine audits. An unlisted enclosure violates OSHA 29 CFR 1910.303, which requires all workplace electrical equipment to be approved by a Nationally Recognized Testing Laboratory.
• ✔
  ISO 9001 certification — confirms the manufacturing team operates under a documented quality management system with traceability from raw material to finished product.
• ✔
  In-house design and fabrication capability — a real custom enclosure manufacturer handles CAD design, laser cutting, CNC bending, TIG/MIG welding, and powder coating under one roof. Outsourced steps add lead time and quality control risk.
• ✔
  NEMA/IP testing documentation — ask for salt spray test reports (ASTM B117), hose-directed water test results, and gasket compression data. A manufacturer that cannot produce these documents may be self-certifying ratings without verification.
• ✔
  Lead time transparency — standard custom orders run 1-4 weeks; complex projects with specialty materials (316 stainless, specific RAL powder coat colors) take 6-8 weeks. Any manufacturer quoting universally short lead times without asking about specs should raise a flag.
• ✔
  Weld and coating quality standards — enclosure welds should reference AWS D1.3 (sheet steel) with documented weld procedures. Powder coating should meet 2-4 mil (50-100 micron) thickness per industry norms, verified with a coating thickness gauge on every batch.

Industry Applications — Telecom, Solar, Traffic Control, and Beyond

Different industries require different environmental and regulatory standards for custom outdoor enclosures. Understanding where each industry has its priorities helps to specify the right configurations to meet each need.

Outdoor Telecom Enclosures

The world telecom enclosure market is forecasted to reach USD 4.36 billion by 2033. 5G small cell deployments will boost demand for weather-sealed thermally managed housings at thousands of new cell sites. An outdoor telecom enclosure must contain RF gear, power distribution, fiber termination panels and battery backup. NEMA 3R is a standard for general outdoor telecom sites, but NEMA 4X is better suited for sites exposed to salt spray or industrial pollution. Cooling is critical – modern 5G radios generate significantly more heat than 4G gear, and outdoor enclosure cabinets require ventilation or active cooling for all applications.

Solar Energy and Battery Storage

Solar combiner boxes gather output from many PV string circuits. The National Electrical Code (NEC) Article 690 governs all solar PV system enclosures in the United States. Battery energy storage system (BESS) enclosures face additional requirements: UL 9540 mandates metallic enclosure construction for listed energy storage systems, and NFPA 855 specifies minimum spacing between outdoor BESS units. IP65 or NEMA 3R is the minimum for outdoor equipment enclosures in solar farms, with NEMA 4X required for coastal or desert installations where sand and salt exposure is constant.

Traffic Control Cabinets

Traffic signal controllers, malfunction management units, and detector cards sit inside NEMA TS-2 compliant enclosure cabinets at intersections. These industrial enclosures can resist vibration, temperature cycling, vandalism, and pollution. State and Federal Departments of Transportation publish specifications for traffic control enclosure dimensions, ventilation, and lock hardware. Most are free standing, floor mount designs in powder-coated carbon steel or aluminum.

Water Treatment and Industrial Process Control

SCADA controllers, motor controls, and chemical dosing systems sit inside NEMA 4X enclosures at treatment stations. These chemically-resistant enclosures are installed in physically and chemically aggressive environments. Hydrogen sulfide, chlorine gas and high humidity make 316 stainless steel or fiberglass the natural choice. These enclosures contain the electronic gear that controls everything from chemical injections, to scraper mechanisms, to PLCs.

Custom vs. Off-the-Shelf — When Does OEM Enclosure Manufacturing Pay Off?

Standard enclosures suffice for common setups: wall-mount junction boxes, rack enclosures for IT equipment, and basic indoor and outdoor distribution panels. The following conditions require custom OEM production of electrical enclosures:

For OEMs incorporating enclosures into their products – think telecom base station manufacturers, solar inverter manufacturers, or EV charging station OEMs – custom enclosures are a fundamental system component. The options available from dedicated outdoor cabinet lines illustrate the breadth of configurations that can be designed for your unique product specifications.

Cost depends on your installation volume. Less than 25 units, modifying an off-the-shelf enclosure generally remains cost-effective. More than 50 units with consistent specs, customized OEM manufacturing provides least cost per delivered unit, rapid installation in the field (no modification), and warranty-backed protection ratings.
