5G Outdoor Enclosure Requirements Every Telecom Engineer Should Know

Deploying 5G is deploying radios, switches, and power systems in places they have never been before — rooftops, utility poles, highway medians, industrial yards. The environment surrounding that gear is not an afterthought. It is what keeps a cell site alive through a Gulf Coast hurricane or enables it to silently fail on a summer scorcher.

This guide unwraps the concrete specs for 5G outdoor enclosures — from NEMA and IP ratings to thermal loads, physical security, material selections, and cable routing— so you can order the correct cabinet before you start dropping them in the dirt, instead of after a field-failure.

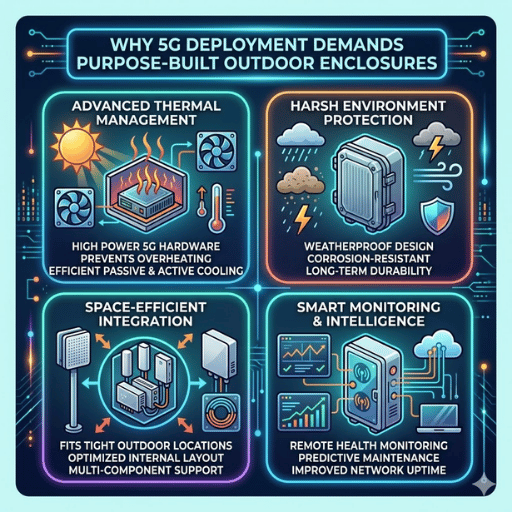

Why 5G Deployment Demands Purpose-Built Outdoor Enclosures

Whereas fourth-generation wireless networks relied on large macro towers placed up to several miles apart, with electronics in climate-controlled basement shelters, fifth-generation constructs its network the other way around: focused on a dense network of smaller cells, with distributed antenna systems, and edge-computing nodes – all of which require their own weatherproof enclosure mounted on a pole, strand, or cement pad in the open air.

Based on the Mordor Intelligence Small Cell 5G Network Market Report, worldwide investment in small cell 5G hardware projects will hit $33.2 billion by 2031. That’s at 31.2% compound annual growth rate from 2026. That kind of growth means hundreds of thousands of fresh cabinets that need to protect fiber terminals, power bars, battery backups, and radios against rain, heat, vandals, and dust – frequently up on an exposed pole 30ft in the air.

A universally available indoor electrical box won’t handle these 5G deployment specs. Outdoor 5G deployment require enclosures designed expressly for continuous environmental exposure, thermal stress, and unattended operation.

NEMA and IP Rating Requirements for 5G Outdoor Enclosures

All outdoor enclosures need to meet a protection rating that offers clear guidance to engineers about its susceptibilities and vulnerabilities to weather conditions and related pollution. Two systems are most common in telecom: NEMA 250 (a standard administered by the National Electrical Manufacturers Association) and IEC 60529 IP indicators. Both assess relevant but different attributes.

NEMA Ratings Comparison for Outdoor Telecom Use

NEMA 3R enclosures offer basic protection against falling rain and sleet, serving as the minimum for sheltered outdoor installations. However, any exposed 5G site needs a NEMA 3 IP55 outdoor cabinet or higher. NEMA 4 enclosures add protection against windblown dust and splashing water, sealing every joint and cable entry point with gaskets and o-rings. The 4X variant adds salt fog corrosion testing per ASTM B117 — a requirement that standard IP66 specs do not cover.

Beyond NEMA and IP specifications, the North American Telecom industry uses Telcordia GR-487-CORE – the de facto standard for outdoor cabinets for telecom electronics used by large carriers. Telcordia addresses Structural Integrity, Thermal Performance, Wind Resistance, and tamper-proof access in a single specs written for wireline outside plant but used widely for wireless deployment. European specs are defined in ETSI EN 300 019 Parts 1-4 for equivalent non-weather-protected telecom locations.

Thermal Management: Keeping 5G Equipment Within Operating Range

Heat is the principle killer on outdoor 5G sites. One 5G radio provides 500-1,000 watts waste. three radios, a power system, and a battery backup enclosed in the same cabinet provide 2,000-4,000 watts thermal headroom which will cause air temps inside this single cabinet to climb to equipment limits within minutes on a sunny weekday afternoon even at 50 degrees North.

ETSI EN 300 019-1-4 defines Class 4.1E for non-weather-protected permanent outdoor use with an operating envelope down to -33C. Most 5G radio manufacturers specify the internal enclosure within the 5G cabinet must stay within this spec even on the hottest summer day in Las Vegas. Beyond -40C thermal limit may cause the equipment to operate less efficiently, reduce longevity and compromise warranties.

Cooling Methods Compared

Humidity is equally as critical. Sealed enclosures that run cooling cycles and heat cycles will create internal condensation, rapidly corroding circuit boards and connectors over time. Internal breather filters with desiccant pads, or active dehumidification fixtures and insulation, avoid moist buildup without compromising the seal.

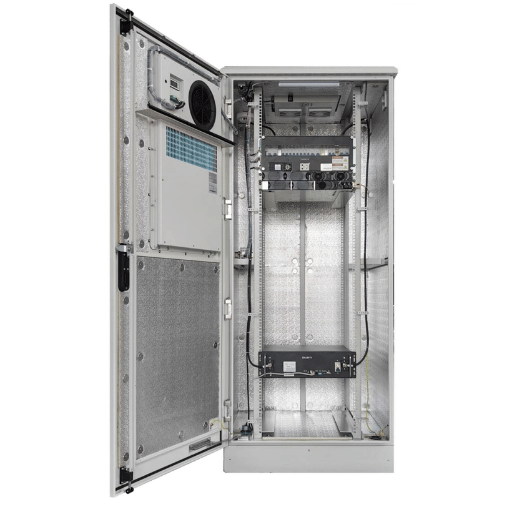

Physical Security and Tamper Protection for Outdoor Cabinets

An outdoor telecom enclosure sits unattended in a public or semi-public space — sometimes for months between maintenance visits. That makes it a target for copper theft, vandalism, and unauthorized access to carrier networks. Physical security is not an optional upgrade; it is a core requirement, especially in urban 5G deployment where cabinets sit on sidewalks and in parking areas.

Security Feature Checklist

• ✔
  IK10 Impact Rating — The highest level under IEC 62262, protecting against 20 joules of impact energy (equivalent to a 5 kg mass dropped from 400 mm). Required for vandal-prone urban locations.
• ✔
  Multi-Point Locking System — Three-point or five-point lock mechanisms distribute force across the door frame, making pry attacks far harder than a single padlock hasp.
• ✔
  Tamper Detection Sensors — Door-ajar switches, vibration sensors, and tilt alarms that report to a remote monitoring system to prevent unauthorized access.
• ✔
  Anti-Pry Plates and Reinforced Hinges — Concealed hinge pins and welded anti-pry flanges eliminate common attack vectors on sealed doors.
• ✔
  Secure Anchoring — Concrete anchor bolts for ground-mount cabinets; stainless steel banding for pole-mount enclosures. Prevents the entire unit from being removed.

Urban deployments present a different threat layout than rural sites. City environments must defend against opportunist vandals, who will sabotage and attempt forced entry, whereas rural installations tend to be targeted by copper thieves and open-ended infiltration that can go days undetected. We typically recommend layering: physical hardening (IK10 panels, multi-point locks), electronic monitoring (tamper alarms, cellular reporting) and administrative controls (key control, audit trail).

Material Selection and Corrosion Resistance

The material of your enclosure must endure 10-20 years of rigorous outdoor operation. Use the wrong material type and the cabinet lifespan is cut short, resulting in maintenance delays, higher costs, and weatherproof seal failures. Every segment of the outdoor telecom enclosure market is dominated by four material options, each with inherent advantages and disadvantages.

Galvanized steel is still the primary material for ground-mounted outdoor cabinets on cross-country telecom networks. Its zinc coat is reliable in inland applications for adequate durability, and cost of material is lowest. Aluminum is the default material for pole-mounted 5G enclosures due to its one-third weight in comparison to steel, and its superior corrosion resistance on aging utility poles.

For satellite sites within one kilometer of saline-water, 316L stainless steel is the most durable. Salt fog exposure stands up well to ASTM B117 testing. Fiberglass or polycarbonate composites offer a special benefit: RF-transparent enclosures do not require separate antenna mounting hardware to receive signals, and these materials also provide electrical isolation in high-voltage proximity installations.

Whatever material is chosen, it must match or surpass the corrosion resistance rating of every exterior piece of hardware – hinges, locks, latch mechanisms, and mounting brackets. Galvanized steel cabinetz with carbon steel hinges fail.

Cable Management, Mounting, and Installation Planning

An outdoor telecom enclosure is only as reliable as its cable entry points, mounting structure, and internal equipment organization. Poor cable routing is the leading cause of seal failures that let water into otherwise weatherproof cabinets. Planning the installation details before the enclosure ships to the site prevents costly rework.

Cable Entry and Equipment Organization

Bottom cable entry is the default for outdoor cabinets because gravity acts as a natural water barrier. Side and top entries require additional weatherproof glands, drip loops, and grommets to maintain the seal. Every cable penetration needs an IP-rated gland or grommet that matches the enclosure’s overall protection class. Enclosures with pre-punched knockouts, DIN rail channels, and labeled port positions keep equipment organized in a single protected environment.

A standard 5G small cell deployment typically includes a radio, a PoE switch or power supply, a router (or gateway), a fiber splitter and occasionally a battery backup. Each enclosure will require 19-inch rack rails or mounting plates to mount these wireless access points and network components, and enough space for the heat-generating equipment to receive adequate airflow.

Mounting Options

• Ground-mount (pad/slab): capacity is highest with the simplest access for maintenance. Needs concrete foundation and is anchored securely. This is the standard, for macro cell sites and multi-carrier hubs.
• Pole-mount: lightweight Aluminum or fiberglass enclosures that can be clamped onto wooden,steel, or concrete utility poles. Usually you can carry 50-100 lbs. Good for small cell and external antenna deployment.
• Wall-mount: Small units mounted on the outside of buildings. The usual location for in-building DAS equipment and indoor-to-outdoor transition points.
• Strand-mount: Ultra-compact enclosures suspended from aerial cable strand. Only feasible with very lightweight electronics (PoE-powered small cells).

How to Select the Right 5G Outdoor Enclosure

Deciding how to specify any of dozens of outdoor network cabinets requires a decision process that guides against too high a specification (wasting budget) or too low a specification (potential field failures). This five-factor process below shows how experienced telecom engineers typically appraise enclosure options for 5G outdoor cabinets.

Modular enclosures allow for further equipment bays, cooling upgrade, and battery expansion with no need to replace the entire cabinet—an essential capability for 5G sites undergoing periodic technology refreshes. For vendors, request documentation of NEMA testing results, GR-487 compliance, and field installation references in environments similar to your deployment.

KDST offers OEM protective enclosures for telecom and industrial applications. We offer complete design through delivery of the protective enclosures in KDST’s outdoor enclosure lineup for NEMA-rated use with the newest 5G equipment protection.
